Specifications
1. Current rating: 0.3A AC / DC
2. Voltage rating: 50V AC / DC
3. Contact resistance: 40m ohm. max.
4. Insulation resistance: 100m ohm. min. at 100V DC
5. Withstand voltage: 100 AC for one minute
6. Operating Temperature range: -40° - 85℃
Meterial and Plating
1. Housing: LCP (Natural Color) UL94V-0
2. Contact: Phosphor Bronze
3. Plating: 3u" Gold Flash

Specifications
1. Current rating: 0.5A AC / DC
2. Voltage rating: 50V AC / DC
3. Contact resistance: 30m ohm. max.
4. Insulation resistance: 100m ohm. min. at 100V DC
5. Withstand voltage: 100V AC for one minute
6. Operating Temperature range: -20° ~ 105℃
Meterial and Plating
1. Housing: LCP (Natural Color) UL94V-0
2. Contact: Phosphor Bronze
3. Plating: 3u" Gold Flash

Specifications
 1. Current rating:  0.3A  AC / DC
 2. Voltage rating:  50V  AC / DC
 3. Contact resistance: 40m ohm. max.
 4. Insulation resistance: 100m ohm. min. at 100V DC
 5. Withstand voltage: 100 AC for one minute
 6. Operating Temperature range: -25° - 85℃
 Meterial and Plating
 1. Housing:  LCP (Natural Color) UL94V-0
 2. Contact:  Phosphor Bronze
 3. Plating: 3u" Gold Flash
 Number of Connector: 2500pcs/Reel

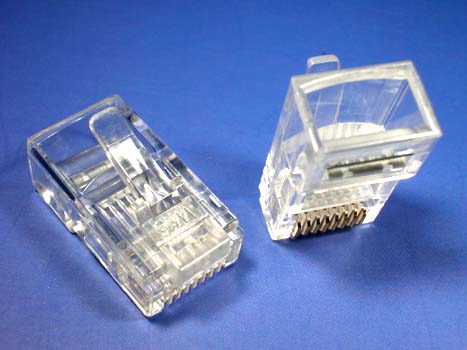

MATERIALS
 HOUSING : STANDARD MATERIAL GLASS FILLED POLYESTER UL (94V-0).
 COLOUR : TRANSPARENCE
 CONTACT : 0.45mm DIA PHOSPHOR BRONZE. GOLD PLATING OVER NICKEL.

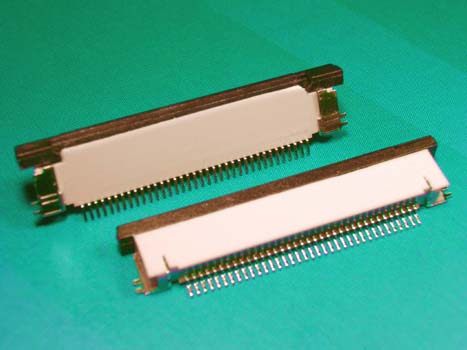

Material:
    Insulator: Thermoplastic UL94V-0
    Actuator: PPS UL94V-0
    Contacts: Phosphor Bronze
    Latch: Phosphor Bronze

MATERIALS:
 1. HOUSING-PBT POLYESTER UL94V-0
                     MIXED GLASS FIBER.
                     STANDARD COLOR-BLACK
 2. CONTACTS-0.45mm DIA. ROUND CONTACTS
                        PHOS-BRONZE PLATED WITH HARD GOLD.
 3. SHIELD-0.25MM THICK COPPER ALLOY,
                  PLATED WITH NICKEL.
 CAVITY CONFIRMS TO FCC RULES AND REGULATIONS
 PART 68,SUBPART F.

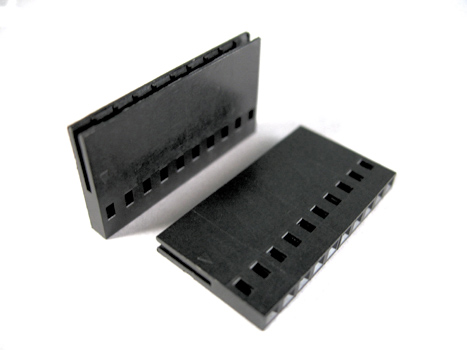

Material:PBTP UL94V-0 Black
Current rating:3A AC,DC
Voltage rating:250V AC, DC
Temperature range:-25 C~ 85 C
Insulation resistance:1,000M OHM min.
Withstand voltage:1000V AC/minute
